Marine VHF RADIOTELEPHONEÂ FM-4850
VHF Radio, GPS, AIS, Loud Hailer, NMEA2000 and DSC Calling (Black Box Type)
Features
When connected to an MFD or Chart Plotter that can read and display AIS data, the built-in AIS receiver will guarantee your safety at sea by providing all the data you need for situational awareness and collision avoidance.
Loud Hailer
15 W PA/Loud Hailer having 8 automatic fog/warning signals and a listen-back capability allowing for two-way communication.
Class D DSC
With Class D DSC (Digital Selective Calling), the FM-4800 allows you to transmit both routine calls and distress calls in case of an emergency.
NMEA2000 Interface
Plug and play NMEA2000 interface allows you to easily connect the FM-4800 to your navigation devices. When connected to the NavNet TZtouch2, DSC calls can be initiated directly from your MFD.
Dual Station
​The optional handset HS-4800 supports al the functionality of the FM-4800 and works as a second station. Intercom function is also supported.
- 25 W/1 W output power
- Loud Hailer/ Fog Horn
- Dual Station with optional handset
- ATIS mode for inland waterways
- 10 weather channels
- Fully waterproof (IP67)
- Up to 3 Handsets HS-4800 and Speakers SP-4800 connectable
Drawing
Features
Built-in GPS
Built-in High-sensitivity 72 channels GPS with internal antenna which eliminates external GPS antenna and its wiring requirements.
Built-in AIS receiver
When connected to an MFD or Chart Plotter that can read and display AIS data, the built-in AIS receiver will guarantee your safety at sea by providing all the data you need for situational awareness and collision avoidance.
Loud Hailer
15 W PA/Loud Hailer having 8 automatic fog/warning signals and a listen-back capability allowing for two-way communication.
Class D DSC
With Class D DSC (Digital Selective Calling), the FM-4800 allows you to transmit both routine calls and distress calls in case of an emergency.
NMEA2000 Interface
Plug and play NMEA2000 interface allows you to easily connect the FM-4800 to your navigation devices. When connected to the NavNet TZtouch2, DSC calls can be initiated directly from your MFD.
Dual Station
​The optional handset HS-4800 supports al the functionality of the FM-4800 and works as a second station. Intercom function is also supported.
- 25 W/1 W output power
- Loud Hailer/ Fog Horn
- Loud Hailer/ Fog Horn
- Dual Station with optional handset
- ATIS mode for inland waterways
- 10 weather channels
- Fully waterproof (IP67)
Drawing
Full GMDSS-compliant VHF radiotelephone with Class-A DSC facility and CH70 watch receiver
Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-14
Features
- Semi-duplex 25-Watt VHF radiotelephone with a built-in Class-A DSC and CH70 watch Receiver
- Fully meets GMDSS carriage requirements for SOLAS ships
- Easy to read, high-contrast 4.3″ bright color LCD
- Enhanced noise reduction and speaker for superb voice quality
- Quick access to CH16 key
- Easy channel selection with rotary control or direct keypad input
- Automatic entry of own ship position and time through the interfaced GPS receiver
- ATIS signal transmission available for inland waterways
- Connect to an office or home via an existing PSTN (Public Switched Telephone Network)
Interconnection Diagram
Reliable MF/HF Radiotelephone for general and distress communications with integrated DSC/DSC Watch Receiver
Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-14
Features
- Fully meets GMDSS carriage requirements for SOLAS ships.
*To find the most suitable MF/HF radiotelephone for your sea area, please contact a FURUNO Distributor - Meets the new ITU recommendation on digital selective calling system for use in the Maritime
- Mobile Service, ITU-R M.493-14
- High-contrast 4.3″ bright color LCD (480×272 pixels)
- Capable of distress, safety and routine communication
- Instant selection of 256 user-specifed channels with a rotary knob or direct keypad input
- Quick access to DSC message composition by dedicated keys on the control unit
- Quick access to dedicated functions in the menu operation using numeric keypad

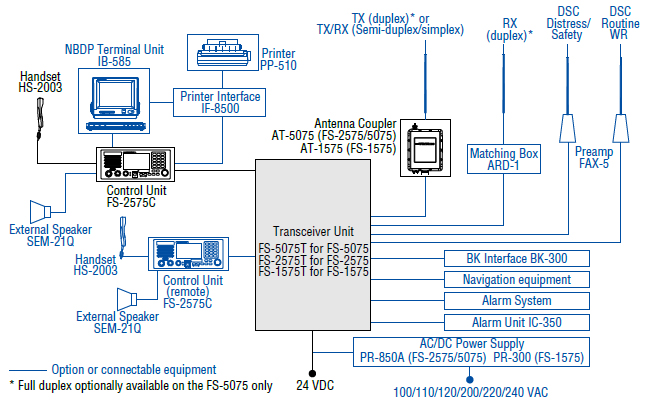

Interconnection Diagram
Reliable MF/HF Radiotelephone for general and distress communications with integrated DSC/DSC Watch Receiver
Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-14
Features
- MF/HF radiotelephone with DSC facility
- Fully meets GMDSS carriage requirements for SOLAS ships.
*To find the most suitable MF/HF radiotelephone for your sea area, please contact a FURUNO Distributor. - Meets the new ITU recommendation on digital selective calling system for use in the Maritime
- Mobile Service, ITU-R M.493-14
- High-contrast 4.3″ bright color LCD (480×272 pixels)
- Capable of distress, safety and routine communication
- Instant selection of 256 user-specifed channels with a rotary knob or direct keypad input
- Quick access to DSC message composition by dedicated keys on the control unit
- Quick access to dedicated functions in the menu operation using numeric keypad
Interconnection Diagram
Reliable MF/HF Radiotelephone for general and distress communications with integrated DSC/DSC Watch Receiver
Meets the new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-14
Features
- MF/HF radiotelephone with DSC facility
- Fully meets GMDSS carriage requirements for SOLAS ships.
*To find the most suitable MF/HF radiotelephone for your sea area, please contact a FURUNO Distributor. - Meets the new ITU recommendation on digital selective calling system for use in the Maritime
- Mobile Service, ITU-R M.493-14
- High-contrast 4.3″ bright color LCD (480×272 pixels)
- Capable of distress, safety and routine communication
- Instant selection of 256 user-specifed channels with a rotary knob or direct keypad input
- Quick access to DSC message composition by dedicated keys on the control unit
- Quick access to dedicated functions in the menu operation using numeric keypad
- Full-duplex kit available (optional supply)
Specifications
