Ku-Band VSat FV – 110
This will totally transform maritime communication, with increasing levels of both operational and social communications conducted all at the same time through this new service. Navigators can obtain weather and chart updates* online in order to optimize their route planning and monitoring tasks, while all onboard can still enjoy the benefit of the Internet, e-mailing and making voice calls to the head offices or their friends and families back home all via a single terminal. It would greatly increase information efficiency onboard. It will change the way mariners and vessels communicate, just as on-shore broadband data communications paved the way for the broadband IP era.
Features
- Supports a variety of modem types* (iDirect, Comtech, etc.)
- Easy to install with just one cable between Above Deck Equipment (ADE) and Below Deck Unit (BDU)
- Operate two antenna systems on a single modem for increased redundancy
- Easy maintenance access through hatch in the antenna unit
- Global support and services
- Antenna reector size: 1.03 m
- Antenna weight: 126.5 kg

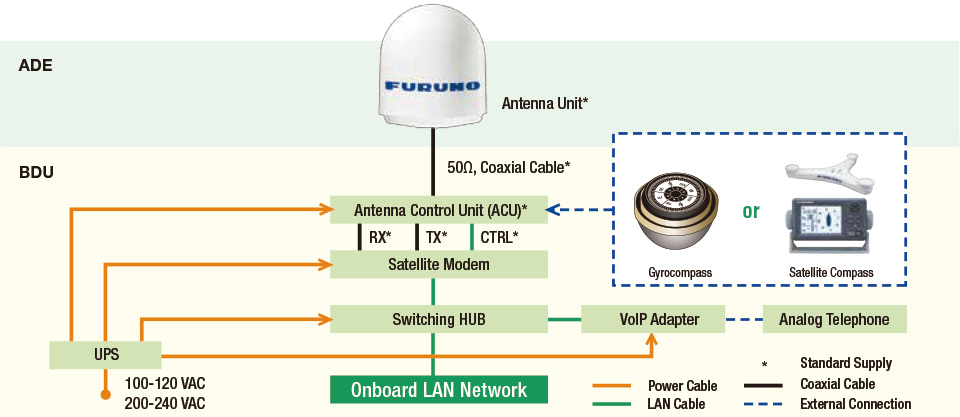

VSAT System Configuration
* Depending on service provider, layout may differ
Inmarsat Global Xpress FV-110GX
Features
- Easy to install with just one cable between Above Deck Equipment (ADE) and Below Deck Equipment (BDE)
- Â Automatic Azimuth Calibration and Automatic Cable Calibration significantly reduce installation time
- Global customer support and technical services provide by FURUNO worldwide service network
- Reliable access to the full range of Inmarsat Fleet Xpress system
- Antenna reflector size: 1.03 m
- Antenna weight: 126 kg
Specifications
| Antenna Unit KU-100AT | |||
| Antenna Diameter | Dish size: 1.0 m | ||
| Antenna Gain | TX | 41.8 dBi (14.25 GHz) | |
| RX | 40.6 dBi (12.50 GHz) | ||
| Polarization | Co-pol and Cross-pol | ||
| Transmitting Frequency | 14.0-14.5 GHz (Standard) | 13.75-14.5 GHz (option)* | |
| Receiving Frequency | 10.7-12.75 GHz | ||
| RF Package | TX | 8 W BUC (Block Up Converter) | 8 W Extended BUC (option) |
| RX | Wideband LNA | ||
| GPS Receiver | Incorporated | ||
| Ship’s Motion | Roll | ±30°/7 sec | |
| Pitch | ±10°/5 sec | ||
| Yaw | ±4°/20 sec | ||
| Rate of Turn | ±6°/1 sec, 1°/sec² | ||
| Environment | |||
| Temperature | Operational: -25°C to +55°C | ||
| Storage: -40°C to +70°C | |||
| Relative humidity | Up to 93 % at 40°C | ||
| Waterproo fing | IP56 | ||
| EMC | IEC 60945 Ed. 4 2002-08 | ||
| Shock | IEC 60068-2-27 | ||
| Vibration | IEC 60945 Ed. 4 2002-08 | ||
| Wind speed | 60 m/sec Max | ||
* Extended BUC required
| Antenna Control Unit KU-100AC | |
| Interface | Antenna Interface (Power, L-band with control), TRX IF (for Modem), Ethernet, Heading, RS232 (for maintenance) |
| Power Supply | 100-240 VAC (50, 60 Hz) 300 W |
| Environment | |
| Temperature | Operational: 0°C to +55°C |
| Storage: -40°C to +70°C | |
| Relative humidity | Up to 93 % at 40°C |
| EMC | IEC 60945 Ed. 4 2002-08 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60945 Ed. 4 2002-08 |
